Samyung BNWAS BNW50 Marine – CV.Sahiya Safety Indonesia merupakan distributor perlengkapan kapal terkemuka dan terlengkap dijakarta.
Diskripsi :
Samyung BNWAS BNW50 Marine – Samyung Bridge Navigational Watch Alarm System Marine

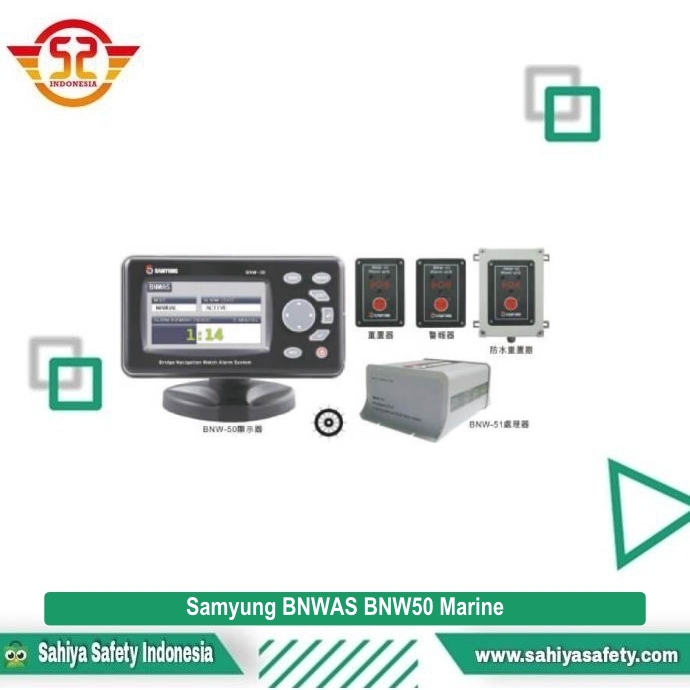

1 Set BNW-50 Bridge Navigation Watch Alarm System
Feature
Comply with IMO Res. 128(75), IMO Res.A.694(17), IEC 62616(2010), IEC 60945(2002) & IEC 61162(2007).
ALR (alarm) sentence output (IEC 61162) for VDR.
Responds to the other navigational equipment’ s ALR (alarm) and EVE(event) sentence input.
Time display function once GPS signal is connected.
Easy to extend the function due to the availability of various options.
Function that monitors the bridge activity and detects operator disability which could lead to marine accidents
Alerts the stand-by officer when the watch officer does not responds to the visual and audible alarm.
Equipped with emergency call and navigator call button. Automatic reset function that detects the movement of the watch officer by using the motion sensor.
Use of password protects the control of setup menu
Easy to operate since display uses numbers and graphics.
Specifications
DISPLAY UNIT (BNW-50)
Screen size : 4.3 inch TFT color LCD, 470 x 272 pixels
Power consumption : 130mA, power save mode 70 mA (24 V DC)
Size : 129 x 183 x 113.5 mm (HxWxD)
Weight : 0.5Kg
Operation temperature : -15 ℃ ~ 55 ℃
PROCESSOR UNIT (BNW-51)
Main power supply : 110V / 220V AC
Back-up power supply : 24V DC (for 6 hour, min 3 Ah)
Power consumption : 130mA
Size : 221 x 165 x 95 mm (HxWxD)
Weight : 1.5Kg
Operation temperature : -15 ℃ ~ 55 ℃
Interface : Inputting reset pulse by radar. Inputting interface of operating track controller Inputting NMEA data(Reset, alarm, etc) Inputting DC12V power supply and reset of motion sensor and reset unit. Outputting the alarm signal for reset and alarm unit. Outputting the NMEA data for blackbox(VD
1 set itu terdiri dari
– display 1
– procesor 1
– reset unit 3
– alarm unit 7
– motion sensor 2
– manual book 1
